Wind driven, they are used world wide because of their low capital cost, zero running cost, adaptability, high capacity per vent and overall reliability.
Designed for easy installation without loading the roof structure, they ventilate continuously with low power consumption.The product has unique stale air extract capacity and is able to work under hazardous conditions.
Completely made of stainless steel including the base plate, these are extremely strong with life span lasting generations.The attractive and elegant finish with designer angle adjuster throat and matching base plate make lasting impression for years to come.

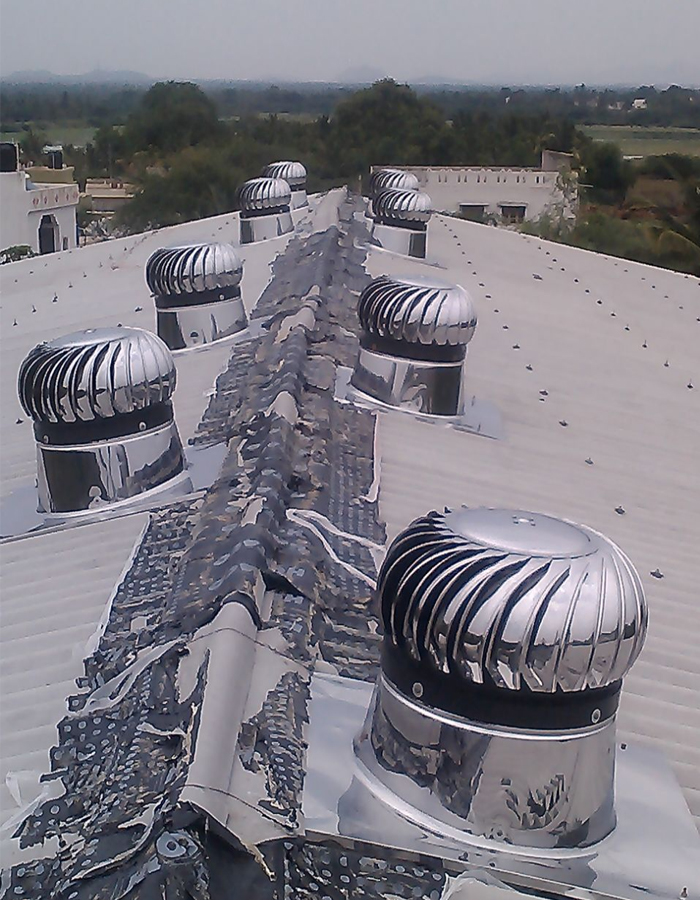

Factories, warehouse, workshops and even houses are frequently constructed without an efficient natural ventilation system. Providing of doors and windows is not adequate since stale hot air does not disperse by itself.

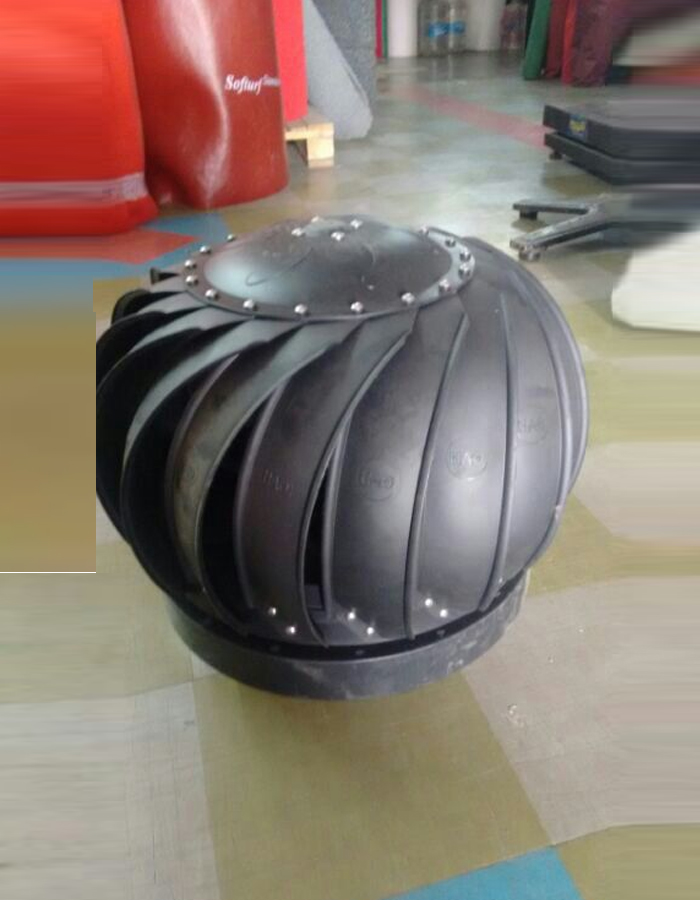

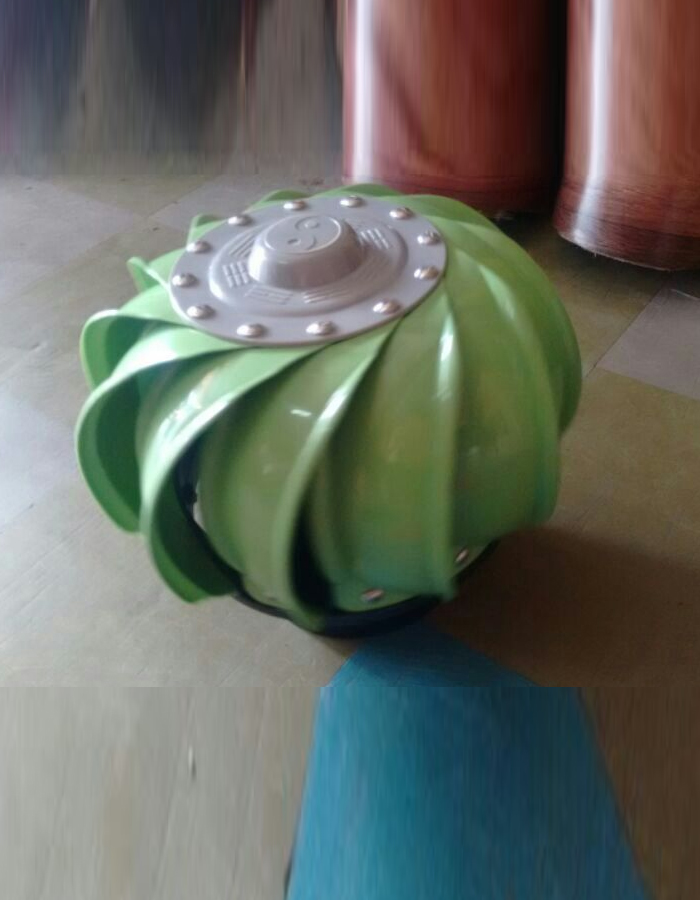

The turbo ventilator operates by harnessing the full velocity of the wind to induce airflow by centrifugal force. It spins event at 2mph wind speed. During rotaion The centrifugal force created draws the air in the turbines towards the spinning vanes and out of the turbine. The airfoil vanes act as cups, catching the wind at the windward side of the turbines.Simultaneously air is forced out at the leeward side creating continuous airflow; giving rise to ventilation. Air drawn out by the ventilators is continuously replaced by fresh air from outside the building through the building opening. Since the turbine is rotating continuously, the airflow is also continuous resulting in effective ventilation. Turbo ventilators also help to prevent condensation by extracting moist air and in the case of fire will extract smoke and fumes.Turbo ventilators are easy to install and are available with FRP bases to match your roofing profile.
Turbo ventilators are available in stainless steel and aluminium construction with throat diameter of following sizes: 12", 14", 20", 24". Larger sizes up to 40" can also be made available on request.
In line with the innovative character of the company, Real Metals is now going a step ahead to launch aesthetically designed Stainless Steel ventilators in the market.

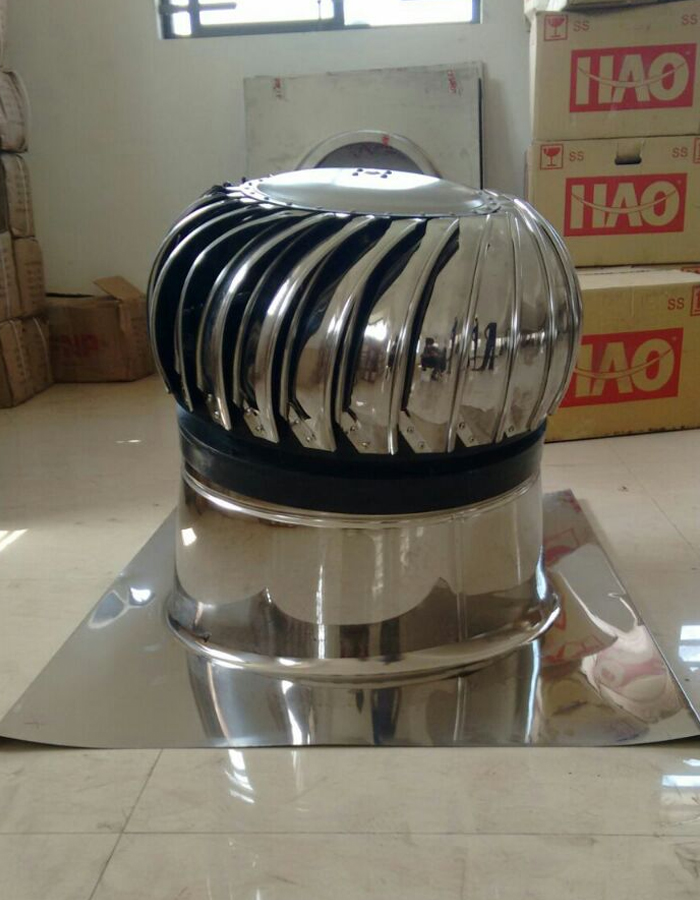

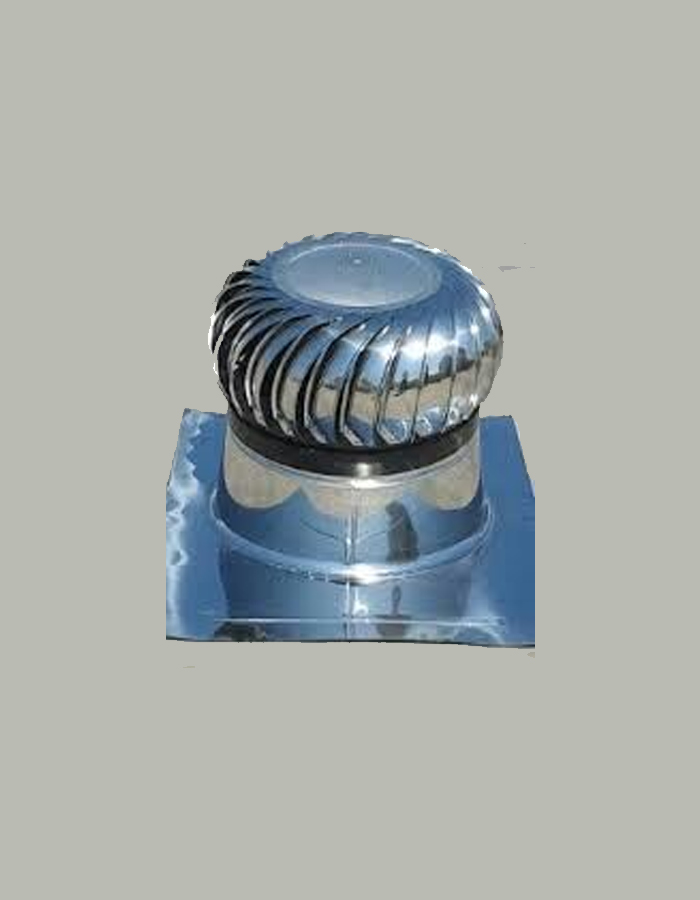

This unique range of ventilators in SS 202 and SS 304, is extremely strong and has more life span that the normal aluminium ventilators. These ventilators have specially designed body with attractive finish, angle adjuster throat and the base plate, all constructed in SS making it strong and resistance to elements.
Stainless steel ventilators double curved vanes are specially designed for maximum weather durability, maximum wind driven efficiency and rain spill deflection.specially designed aerodynamic vanes are strong by structure and light in weight. It is designed to achieve maximum wind energy utilization and performance of exhaust suction.
Acidic areas, chemical plants, factories, pharmaceutical plants, these are the areas where stainless steel ventilators can be more useful.
